This is pretty neat. Via Crooks & Liars, we have Radiohead’s new music video (embedded below the fold), for House of Cards, which uses no cameras at all. From the YouTube description,

In Radiohead’s new video for “House of Cards”, no cameras or lights were used. Instead, 3D plotting technologies collected information about the shapes and relative distances of objects. The video was created entirely with visualizations of that data.

There’s more information on the making of the video at Radiohead’s Google page, where we learn,

No cameras or lights were used. Instead two technologies were used to capture 3D images: Geometric Informatics and Velodyne LIDAR. Geometric Informatics scanning systems produce structured light to capture 3D images at close proximity, while a Velodyne Lidar system that uses multiple lasers is used to capture large environments such as landscapes. In this video, 64 lasers rotating and shooting in a 360 degree radius 900 times per minute produced all the exterior scenes.

For those not familiar with the acronym, LIDAR refers to LIght Detection And Ranging, and is the optical equivalent of RADAR, which uses radio waves. A basic LIDAR system fires pulses of light at a target and measures the time required for the reflected signal to return; the time delay is then a direct measure of the distance to the target. LIDAR can also be used (and is used by the police) to determine the speed of objects: by making a pair of distance measurements with the knowledge of the time between measurements, one can calculate the speed of the vehicle. This speed-measuring technique is different from ordinary RADAR, which aims a quasi-monochromatic signal at a target and measures the Doppler shift of the frequency to determine relative speed. It’s probably worth mentioning that rangefinding and Doppler speed detection are somewhat mutually exclusive measurements: to do rangefinding, one needs a short wave pulse, while for Doppler speed detection, one needs a long, single frequency wave. A single signal cannot typically do both techniques simultaneously.

One advantage of using LIDAR as opposed to RADAR is the much shorter wavelength of visible light. Generally, one can only resolve objects over a length scale equal to the wavelength of the imaging wavefield. RADAR systems use a signal of wavelength from millimeters to tens of meters, while visible light has a wavelength on the order of microns (0.000001 meters). For long-range applications, LIDAR is limited by the fact that visible light is subject to significant distortion by the atmosphere.

In any case, I was unaware of how common LIDAR has become as a commercial application. The Velodyne website lists the following applications:

Autonomous vehicle navigation (commercial and military)
Automotive safety systems, adaptive cruise control, lane following
3-D mapping
Surveying – mobile, as-built
Robotics
Research
Autonomous agricultural vehicles
Movie set rendering
Mining vehicles, profile monitoring
Tunnel surveys
Security – building perimeter monitoring

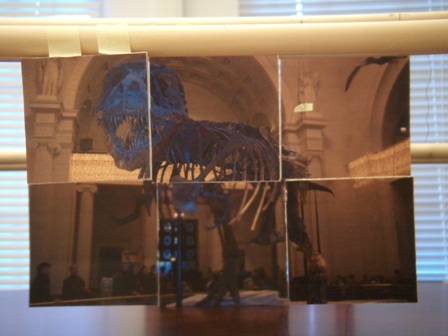

Structured light is a technique which is also quite interesting. As we’ve talked about before on this blog, in particular in the context of making anamorphic images, in general one cannot get depth information about an object using measurements from a single point of view. I demonstrated this with my anamorphic T-Rex. Seen from a single, special point of view, the image looks almost normal:

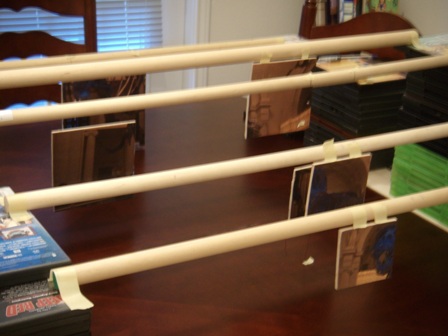

The six individual photographs, however, are at very different distances in space. From another angle, the picture looks like this:

Is there any way to get the depth information from measurements only at the single, special viewpoint? Yes, if we add structure to the light field used to illuminate the scene. Conceptually, the simplest way to do this is to use as a light source a pair of interfering monochromatic plane waves, as illustrated below (adapted from Wikipedia):

The interference of the two plane waves produces a light field which contains a collection of parallel light and dark lines. The image on the right is an illustration of what this pattern would look like when projected on a flat surface.

How does this pattern help us? When we project it onto a complex object, the lines will appear to be spaced further apart or closer together, depending on whether the surface in question is closer or further from our perspective, respectively. By analyzing the spacing and curvature of the lines, one can determine a depth profile of an object, at least from that one perspective.

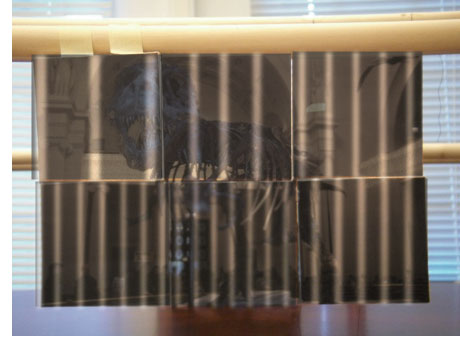

As an example, here’s a crude simulation of what my T-Rex image would look like if illuminated with structured light with a spacing of 1 inch between bright lines:

From the spacing and the thickness of the bright lines, we can easily determine the relative depth of the different parts of the image. Clearly, the upper-left image is the closest to the source, while the bottom center image is the farthest. This is a simple example; real structured imaging is used to measure the structure of complicated objects, in which case the pattern of lines is curved. An example (from Wikipedia) is below:

Structured imaging also has a lot of applications. From Wikipedia, we have the following list:

• Precision shape measurement for production control (e.g. turbine blades)
• Reverse engineering (obtaining precision CAD data from existing objects)
• Volume measurement (e.g. combustion chamber volume in motors)
• Classification of grinding materials and tools
• Precision structure measurement of grinded surfaces
• Radius determination of cutting tool blades
• Precision measurement of planarity
• Documenting objects of cultural heritage
• Skin surface measurement for cosmetics and medicine
• Body shape measurement
• Forensic inspections
• Road pavement structure and roughness
• Wrinkle measurement on cloth and leather
• Measurement of topography of solar cells

Funny how so much interesting optics can go into a music video! Speaking of which, here’s the video:
