Levitation and diamagnetism, or: LEAVE EARNSHAW ALONE!!!

In one of my regular explorations of StumbleUpon I happened across a nice homemade demonstration of magnetic levitation on a page called spark, bang, buzz.  The demonstration is adapted from a description at scitoys.com.  The setup is illustrated schematically below:

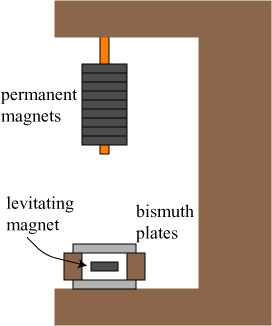

A strong collection of permanent magnets are supported by a wooden frame above the ‘levitation’ area, and provide the ‘lift’ for the levitating magnet.  The levitating magnet itself is supported between a pair of plates made of bismuth which — and this is in fact the key point — is a strongly diamagnetic material.

It is a nice demonstration, but what really caught my eye was the following passage of the post:

It is always annoying to me when someone flashes a bunch of mathematical mumbojumbo in our faces and says something is impossible. Many times the impossibility may be true in the true sense of the mathematical definition, but mathematical definitions often fall way short when evaluating our real and practical world. Someone named Earnshaw, using mathematical mumbojumbo, said that a permenant magnet can not be levitated without using some energy input for stabilization. In the practical sense, one would be a fool to take the Earnshaw therom seriously. The picture shows that permenant magnet levitation can easily be done at home… Diamagnetism probably does not fall within the definition of the Earnshaw therom but who cares.

It’s hard to tell if the author is being snarky or really looks upon mathematical physics as a “mumbojumbo” that impedes progress.  Taking the statement at face value, it highlights an important and semi-common misunderstanding of many physics theorems, and so I thought I’d take a qualitative stab at explaining Earnshaw’s theorem and its relationship to diamagnetic materials and magnetic levitation.

Samuel Earnshaw (1805-1888) was an English clergyman and mathematician who is best known for his eponymous theorem, first published in 1839*.  In modern terms, the theory may be stated roughly as:

A collection of electric charges or magnetic dipoles cannot be maintained in a stable stationary equilibrium condition by the application of static fields alone.

To phrase it in more practical terms: can we put together a collection of point charges/dipoles into an arrangement that can be used to levitate another point charge/dipole?  The answer, as Earnshaw found, is “no.”

If you’ve ever played with bar magnets, you’ve probably proven Earnshaw’s theorem to yourself without even knowing it!  If you’ve tried to make one magnet ‘hover’ using the magnetic attraction of another, you’ve found that the ‘hover’ magnet either sits limply on the tabletop or snaps quickly to the other one.  It is not possible to make a bar magnet levitate in a stable position only through the use of other bar magnets.

It is interesting to note that Earnshaw himself was concerned with quite a different problem: the nature of the “aether”, which we have talked about quite a few times in the past (see here and here, for instance).  In the early 1800s, scientists had determined that light has wavelike properties; however, this insight raised many new questions.  All waves observed at the time were known to travel in a medium of some sort: water waves travel in water, sound waves travel in air.  By analogy, scientists of the 1800s assumed that light must travel in some as yet unobserved medium, dubbed the aether.  (They were wrong; light oscillates without any material medium, and Einstein’s theory of relativity would be the end of serious aether physics.)

Theorists began to speculate on what sort of material could have properties consistent with the observed properties of light, and Earnshaw attempted to determine the nature of the forces between the fundamental particles of the aether.  He found that a system of particles could not be in stable equilibrium if the forces involved followed an inverse square law, in which the force between two particles is a function of 1/r^2, where r is the distance between the particles.  Such a law is followed by gravity,  electricity and magnetism. He concluded that the aether must be affected by two forces: an inverse square law force which is attractive, and a force which is not inverse square and is repulsive.  Earnshaw’s speculations about the aether are now obsolete and mostly forgotten, but his observations about inverse square law forces were of fundamental importance.

Mathematically, it is straightforward to prove Earnshaw’s theorem through the use of vector calculus.  I like to keep things non-mathematical on this blog for the most part, however, so we will instead give a plausibility argument for Earnshaw’s theorem for a simple model system.

Let’s consider a collection of electrical charges confined to a tabletop, and examine the stability of a positive charge ‘balanced’ between four other positive charges fixed to the corners of a square:


If the blue charge (to be called the ‘test charge’) is placed in the exact center of the square, the net force on it will be zero, as forces from charges on opposite sides of the square will cancel:


Force 1 is equal and opposite to force 4, and force 3 is equal and opposite to force 2.  Is this a stable configuration?  In other words, if we move the test charge away from its center position, will it be pushed back towards the center, or will it slide out and away?

Clearly, if the test charge is pushed directly towards one of the corner charges, it will be pushed back towards the center.  If we push it towards charge 2, for instance, it will feel a greater force from charge 2 and a lesser force from charge 3 (remember, force is proportional to 1/r^2), and it will be pushed back towards the center.

Because it is surrounded by positive charges, it would seem at first that a similar thing would happen  if we push it in any direction.  However, if we move the charge along a path which takes it between charges 2 and 4, we find a situation like the following:


Though, individually, force 2 and force 4 are greater than force 1 and force 3 due to the inverse square relationship (in the picture, they have longer arrows), as the charge gets closer to the midpoint between charges 2 and 4, their forces begin to point almost completely in opposite directions and cancel each other out.  Simultaneously, the forces produced by charges 1 and 3 begin to point in the same direction and reinforce one another.  If one works through the mathematics, one can show that this cancellation/reinforcement is more important than the inverse square decay, and a charge displaced along the path between two charges will be completely pushed out of the square!  This ‘four point charge levitation device’ apparently has a ‘leak’ along each of the lines between charges.

A similar argument applies to magnets.  If we pretend we have a collection of bar magnets arranged in a square, another bar magnet placed in the center of the square will not be in a stable position, and will be pulled (and twisted around) out of the center, and likely towards one of the other magnets:

earnshawbarmagnet(It is best to imagine the bar magnets standing up, i.e. the north pole of the magnet pointing out of the monitor; unfortunately, it isn’t possible to draw a clear picture that way!)

Again, we note that this is by no means a proof of Earnshaw’s theorem, but a plausibility argument.  Using vector calculus, one can show that a levitation device composed of any set of point charges/fixed magnets will have a ‘leak’ and the levitation will be unstable.

Because of this instability when using static fields, one can only create levitation/trapping with permanent magnets if the fields are time-varying or the levitating magnet is spinning.  This latter possibility is used in the very-clever-but-hard-to-make-work-properly toy called the Levitron.  Time-varying fields are used by researchers to trap ions for study in so-called quadrupole ion trapsMagnetic levitation trains which rely on permanent magnets use some sort of dynamic feedback to keep the train stable and running.

Permanent magnets are not the only materials which react to a magnetic field, however; materials exist which are paramagnetic and diamagnetic. To understand such materials, one must understand a little bit about magnetic dipoles.

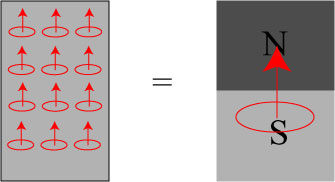

A standard bar magnet is a magnetic dipole; that is, it possesses two “poles”, north and south, and the magnetic field “flows” from the north pole to the south pole:


A magnetic dipole is also formed by an electrical current flowing around a closed loop, as shown below:


The little loop and arrow on the right is the typical way to sketch a magnetic dipole: the dipole has a ‘direction’ which points from the south pole to the north pole.

When a permanent magnetic dipole is placed in an external magnetic field, it experiences two effects: a force dragging it in the direction of increasing magnetic field and a torque rotating it so that the dipole points parallel to the direction of the magnetic field itself.  This is consistent with what we know from bar magnets:


In a very crude sense,  electrons in an atom act like a small magnetic dipoles: the electron possesses an inherent ‘spin’ that makes it act like a little loop of current.  In a permanent magnetic (ferromagnet), these electron dipoles are all lined up with one another, and their effects combine to form one big dipole:

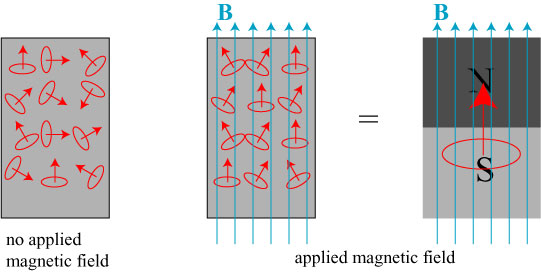

In a paramagnetic material, electrons still act like little bar magnets, but under normal conditions they are arranged randomly, so that there is no ‘net’ north and south pole to the material.  However, when an external magnetic field is applied, the dipoles twist to line themselves up with the magnetic field.  The result is that, when an external magnetic field is applied, the paramagnetic material becomes a bar magnet with total dipole parallel to the external field:


Materials which are not paramagnetic are usually diamagnetic, in which a dipole moment is induced in a material which points antiparallel to the applied field:

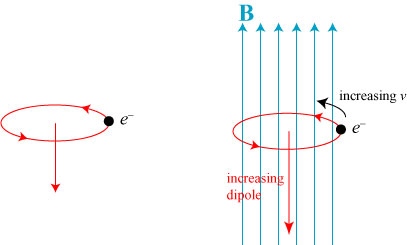

The explanation for diamagnetism lies not in the spin of an electron but in the orbit of an electron around the nucleus of an atom, and this orbital motion itself acts like a little current loop.  We may consider these loops to be randomly oriented, as in the case of paramagnetism.  When a magnetic field is applied to an electron traveling in its little current loop, Faraday induction causes the electron to speed up or slow down.  This in turn changes the effective current in the loop, which changes the strength of the dipole:


Because of the negative charge of the electron, the magnetic dipole increases in a direction opposite to the direction of the applied magnetic field.

How does this allow us to “violate” Earnshaw’s theorem?  Returning to our square arrangement of magnets, let us now replace the bar magnets in the corners with diamagnets.  When the permanent magnet is right in the center of the square, the diamagnets all have  ‘effective bar magnets’ of equal strength induced by it:

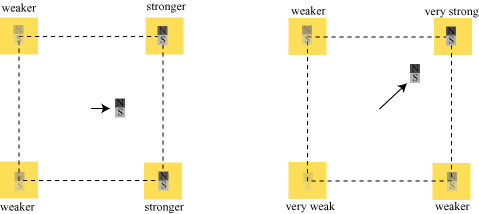

(Remember: we’re treating all the ‘bar magnets’ as pointing out of the monitor!) When we move the bar magnet from the center, its magnetic field will be weaker in the diamagnets it moves away from and stronger in the diamagnets it moves towards.  For instance:


The net result is that the diamagnets closest to the bar magnet push it away very strongly, while the diamagnets far away push it very weakly.  This increasing and slackening of force keeps the magnet stably near the center of the system.  The ‘leak’ that we found earlier in our four point charge/bar magnet system has been ‘sealed’ by the varying strength of the diamagnetic response.

Let us return briefly to our statement of Earnshaw’s theorem:

A collection of electric charges or magnetic dipoles cannot be maintained in a stable stationary equilibrium condition by the application of static fields alone.

How does a diamagnet violate this theorem?  A static field is one which is unchanging in time; the field of a diamagnet, however, changes in response to the motion of the levitating magnet — the fields of diamagnets are time-varying, i.e. not static, when the levitating magnet moves!

Earnshaw’s theorem, which applies only to fixed magnets (and paramagnets), therefore does not apply to diamangets.  To be fair to Earnshaw, diamagnetism was not really well understood until the pioneering work of none other than Michael Faraday in the 1840s, well after Earnshaw’s theorem was published.  And, as we noted, Earnshaw wasn’t concerned with magnets at all!

We can now understand the role of diamagnetic materials in our original levitation device.  The stack of permanent magnets provide the heavy lifting, while the diamagnetic plates maintain the position of the levitating magnet and provide its stability.  They act very much like a pair of fellows escorting a drunk friend home: whenever their friend ‘wobbles’ in their direction, they apply some gentle pressure to direct him back upright!

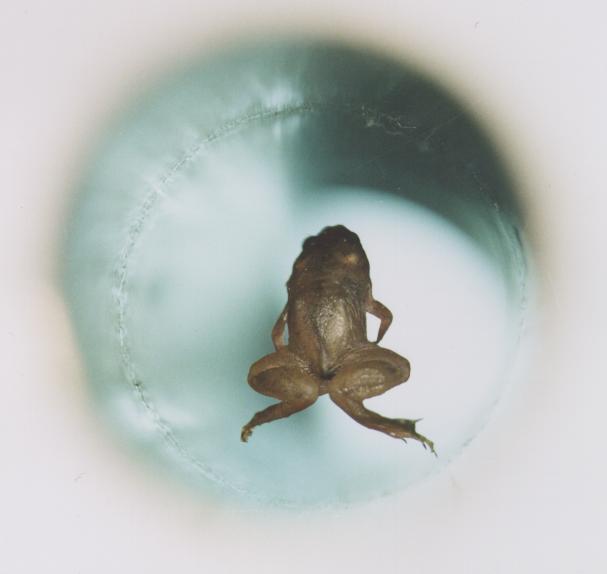

Diamagnetic levitation has been used to spectacular effect in recent years, as all materials are to some extent diamagnetic, including animals.  About a decade ago researchers in the Netherlands levitated a living frog using a powerful magnet:


(The frog was fine!)

Our would-be Earnshaw basher highlights an important issue that is always good to remember in theoretical physics: even physical theories which are seemingly very general are often built upon assumptions which may not be universal.  In the case of Earnshaw’s theorem, brief textbook discussions about it rarely point out explicitly that it doesn’t apply to diamagnetic materials.

Often very interesting results can be discovered by challenging the assumptions of broad physical theories;  I’ve actually blogged in the past about a few examples.  In recent years researchers demonstrated experimentally light beams which propagate “superluminally” through a material medium; this result challenged the commonly-held belief that the group velocity of a wave has no meaning when it exceeds the speed of light.  Another example: for years it was assumed that it is impossible to make ‘perfect’ invisible objects.  The proof of impossibility, however, assumed that the material was isotropic; once anisotropic materials were considered, researchers demonstrated that it is in principle possible to make a perfectly invisible object (at least at one frequency of illumination).

To a lesser extent, I’ve challenged an assumption in a similar way in my own research.  In proving a  general theorem about the focusing of light, my colleague and I noted a “loophole” in the proof that, when applied,  made the focused wave behave very differently.  That observation has led to two papers so far, and counting!

Physics, and science in general, is all about challenging assumptions, and doing so can pay great research dividends.  Our at-home levitation researcher’s criticism of Earnshaw’s theorem highlights the importance of understanding the boundaries of even seemingly broad physical theorems.  So let’s cut the old-timer a little slack, eh?


* Samuel Earnshaw, “On the Nature of the Molecular Forces which Regulate the Constitution of the Luminiferous Ether,” Trans. Camb. Phil. Soc. 7 (1842), 97-112.  Wikipedia makes a minor mistake and states that the theorem was proven in 1842, though it in fact was read to the Cambridge Philosophical Society in March of 1839.  The complete transactions volume 7 was published in 1842.
