Barkla shows that x-rays have polarization (1905)

It is one of the quirks of scientific progress that many great experiments are forgotten as the things they demonstrate become common knowledge in the scientific community.  A good example of this is the 1890 experiment of Otto Wiener, which I blogged about as my very first “official” science history post.  Wiener constructed a beautiful experiment to demonstrate that it is the electric field, not the magnetic field, which is the “active” ingredient in light.  Nowadays, this observation is just taken for granted, and relatively few books discuss the experiment which proved it.  This is not an injustice, though, as much as an expedience:  certain physical phenomena can be understood perfectly well without going into the historical origins of the discovery, and physics students have plenty of much more relevant topics  to worry about.  Nevertheless, there’s a lot of interesting work that isn’t talked about much anymore.

As research for my in-progress textbook, I’ve recently been looking into the original X-ray diffraction experiments of the Braggs circa 1912.  While reading through their 1915 book on X-rays and Crystal Structure, I found a passing reference to the first observations of polarization of X-rays.  Not being able to help myself, I tracked down the original source…

As always, a little background will be helpful.  X-rays were discovered in 1895 by Wilhelm Conrad Röntgen, essentially by accident.  Working with an early cathode ray tube, Röntgen noticed that something was causing a nearby screen to fluoresce, even though the screen was protected from visible light by a piece of cardboard.  Further experiments led, after two weeks, to the very first X-ray photograph of the human body:

rontgenhandDecember 22, 1895 photograph of Anna Röntgen’s hand.

Röntgen originally called his mysterious new emanations X-rays, for lack of a better term.  Though this is still the name most used today, they were for a period of time also known as Röntgen rays.

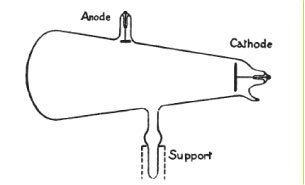

Röntgen observed X-rays with a cathode ray tube of the form pictured below:

rontgentube

Type of tube with which Röntgen discovered X-rays.  The cathode rays impinged upon the broad end of the tube.  From G.W.C. Kaye, X-rays (1918, Longmans, Green and Co., London, 3rd ed.).

In an evacuated tube, a large potential difference is set up between the cathode and anode.  Electrons are pulled from the cathode towards the anode.  Without any air molecules to slow them down, they accelerate to quite high speeds.  When they collide with the anode or the side of the tube, their rapid deceleration results in X-ray production in a process known as Bremsstrahlung.  Those who read this blog regularly will note that this is essentially the same situation which allows X-rays to be generated by peeling Scotch tape.

The first dedicated X-ray tubes followed the same basic design, which remains more or less unchanged to this day.  An anotated picture of a tube from the early 1900s is shown below:

cossortubedetail

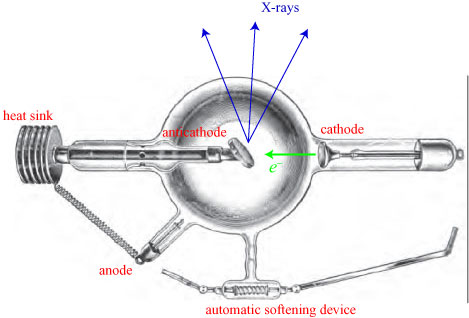

A Cossor bulb with automatic softening device and fin radiator for cooling anticathode.  Adapted from G.W.C. Kaye, X-rays (1918, Longmans, Green and Co., London, 3rd ed.).

The original anode of the standard cathode ray tube has been replaced by an “anticathode”, which serves as a target for the impinging electrons and the source of the X-rays; a secondary anode is present which evidently improves the stability and lifetime of the tube.  The anticathode gets heated tremendously by the electrons, potentially damaging it, so a  heat sink is connected.  The ‘automatic softening device’ regulates the pressure in the vacuum tube:  more/less vacuum results in more/less energetic X-rays.

It is worth noting, for future use, that the X-rays produced at the anticathode more or less spread out in all directions; the following figure illustrates the intensity of X-rays as a function of the angle from the normal to the anticathode:

xraydistribution

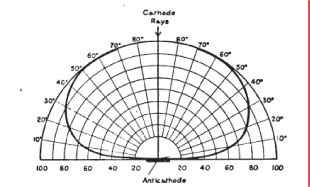

Graph showing distribution of X-rays, the cathode rays being normally incident on an anticathode. From G.W.C. Kaye, X-rays (1918, Longmans, Green and Co., London, 3rd ed.).

For those not familiar with such polar diagrams, the relative intensity of X-rays measured at a particular angle, say 40º, can be found by looking at the distance from the center of the plot to the point where the dark curve intersects the line to the 40º mark.

The practical usefulness of X-rays seems to have been immediately apparent to most researchers.  However, the physical nature of X-rays was not so clear.  Were they a new form of particle?  A new form of wave?  Or another manifestation of electromagnetic waves?

Since the 1860s, physicists had been aware that light is an electromagnetic wave, thanks to the theoretical brilliance of James Clerk Maxwell.  It was natural to suspect that the invisible, uncharged X-rays were also electromagnetic waves, but the connection was not easy to make.  To quote from J.J. Thomson’s 1903 book Conduction of Electricity Through Gases,

Röntgen showed, and the observation has been confirmed by very many subsequent experimenters, that the rays are not bent when going from one medium to another, and therefore that they suffer no deviation after passing through a solid prism.

We have seen (p. 258) that Röntgen rays when they strike against a solid, a liquid, or even a gas, generate secondary rays which in the case of impact against a solid or a liquid are of a much less penetrating character than the incident ones; the incidence of Röntgen rays on the surface of a solid will therefore give rise to radiation proceeding from the surface; by far the greater part of this ‘reflected’ radiation is diffuse, i.e. though the incident rays are all travelling in one direction, the ‘reflected’ rays will spread out  in all directions.

Many experiments have been made to test whether, as in the case of light, there are both inside and outside the boundary of the shadows cast by very small objects, variations in the intensity of the rays corresponding to the well-known diffraction fringes.  Röntgen, who investigated this point, was never able to satisfy himself that the effects he obtained were undoubtedly due to diffraction.

In other words: 1.  Unlike light, X-rays did not seem to be refracted when entering a material surface.   2.  Unlike light, X-rays are reflected diffusely at a surface, instead of being reflected in a single direction.  3.  Unlike light, X-rays did not seem to experience diffraction.

In hindsight, we can see why.  Looking at X-rays and visible light from a particle (photon) point of view: X-ray photons have energies which range from 120 eV (electron volts) to 120 keV (thousand electron volts), while visible light photons have energies on the order of a single electron volt.   This energy difference makes a big difference in the way the photons interact with matter: atoms and molecules typically interact most strongly with photons which match their own characteristic energy.  This characteristic energy is much closer to the visible light energy than the X-ray energy.  The net result is that visible light interacts with matter mostly like a wave, whereas X-rays tend to interact with matter very much like little bullets shooting straight through the body (which is why they’re so good for imaging).

Electromagnetic waves are transverse waves, however, which means that the electric and magnetic fields oscillate in directions perpendicular to the direction of motion:

ehpropagation

The term polarization1 is used to describe the transverse behavior of the electric field.  A measurement of the polarization of X-rays would be excellent evidence of their electromagnetic nature.  However, as noted by Thomson,

No evidence of any polarisation of the rays has been obtained; the opacity of two crystals of tourmaline or of herapathite, placed one on the top of the other, is the same when the axes of the crystals are crossed as when they are parallel.

The X-rays produced by a tube are generally unpolarized; i.e. they contain a combination of horizontally and vertically polarized rays.  In order to detect polarization, one must first isolate one of these components.  However, the “bullet” nature of X-rays makes them shoot straight through ordinary polarizers without noticeable effect.  Ordinary light waves can be polarized by reflecting from a surface at Brewster’s angle; however, as we have noted, X-rays do not reflect normally at a surface and instead scatter in all directions.  As of 1903, researchers strongly suspected that X-rays were electromagnetic waves, but had no evidence to demonstrate this.

At that same time, however, British researcher Charles Barkla (1877-1944) (No relation to the basketball star) was performing experiments upon the phenomenon of secondary X-ray radiation.  Since the discovery of X-rays, researchers had realized that X-rays passing through a volume of gas produce secondary, weaker, X-rays which propagate in many directions.

A preliminary explanation of this secondary radiation was provided by J.J. Thomson in his book Conduction of Electricity Through Gases.  If we suppose that an X-ray consists of a very short electromagnetic wave pulse, then the electric field of that pulse will cause electrons in the gas to oscillate.  This oscillation, in turn, causes the electrons to give off the secondary X-ray radiation:

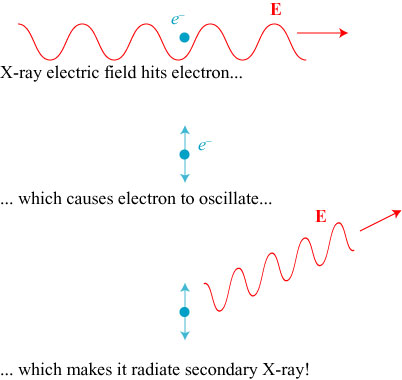

secondaryxray

The electric field produced must oscillate in the same direction that the electron vibrates.  If one does the math, it turns out that, in a plane perpendicular to the direction of the primary X-ray, the secondary X-rays are perfectly polarized!  If the primary X-rays are unpolarized, the secondary rays are polarized as the following figure shows:

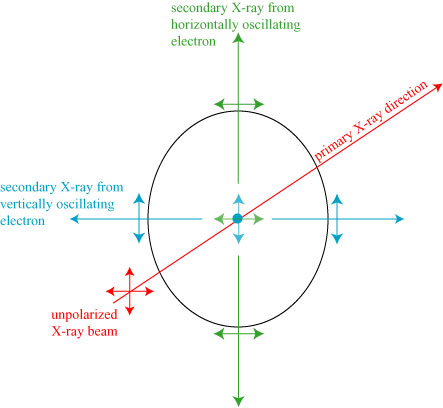

secondarypolarization

If the primary beam is polarized, the secondary radiation will be polarized as follows:

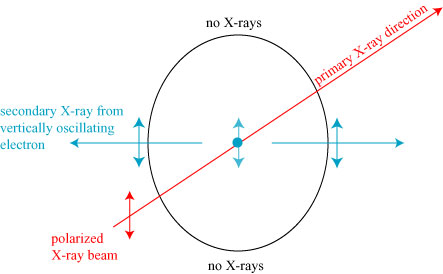

secondarypolarization2

One of Barkla’s colleagues, a Professor Wilberforce, suggested the following method to test if X-rays can be polarized: take a primary (unpolarized) source, generate a beam of secondary radiation which is now in principle perfectly polarized.  Generating tertiary radiation from a beam of secondary radiation, one should see that the intensity of the tertiary radiation varies from a maximum to zero for a range of directions around the secondary beam direction.

The problem: secondary radiation is very feeble, and difficult to measure.  A tertiary beam would be even weaker still, and almost impossible to measure.  What was really needed was a primary beam of radiation which was already polarized.

Looking back at how X-rays are produced in an X-ray tube, however, Barkla realized that there was already a way that polarized X-rays are produced, if they are in fact electromagnetic waves:

A consideration of the method of production of X-rays, however, leads one to expect partial polarization from the anticathode in a direction perpendicular to the axis of the kathode stream.  For the electrons being projected in approximately parallel straight lines from the kathode to the antikathode, there is probably at the antikathode a greater acceleration along the line of propagation of the kathode rays than in a direction at right angles, consequently in a beam of X-rays proceeding in a direction perpendicular to that of the kathode stream it might reasonably be expected there would be greater electric intensity parallel to the stream than in a direction at right angles to that.

In other words, electrons come to a screeching halt at they hit the anticathode; in a plane perpendicular to their line of motion, X-rays should be excited which are polarized:

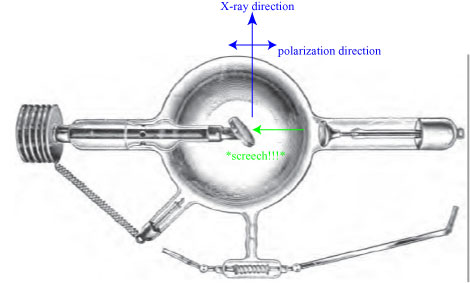

brakingradiation

So how did Barkla take advantage of this?  His diagram of his experimental setup is shown below:

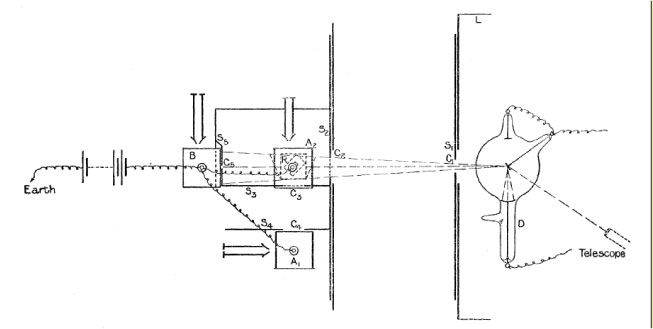

barklaexperiment

The X-ray bulb, D, emanates rays in all directions.  Those which are horizontal and, by hypothesis, horizontally polarized, pass through a pair of apertures in screens S_1 and S_2.  After the apertures, most of the primary beam passes to electroscope B; however, secondary radiation is created by scattering from air.  Radiation which passes horizontally (downward in the figure) is collimated by another pair of apertures and can be detected by electroscope A_1.  Radiation which passes vertically (into the figure) is collimated by other apertures and can be detected by electroscope A_2.

So what do we expect to see?  With the bulb positioned as shown, horizontally polarized X-rays would pass through the first two apertures.  Secondary radiation scattered in the region of the electroscopes will only pass vertically, and therefore detected by electroscope A_2.  If the bulb is positioned with the cathode vertical, vertically polarized X-rays will pass through the apertures.  The secondary radiation will only be detected by the electroscope A_1.  This is illustrated schematically below:

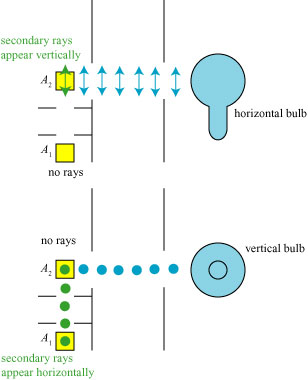

barklaschematic

The electroscopes used for detection are worth mentioning.  The X-rays were in fact indirectly identified by their ionization properties: X-rays ionize the air they pass through, and that electric charge can be detected by a specially designed gold leaf electroscope.

So what did Barkla see?  In his words,

As the bulb was rotated round the axis of the primary beam there was, of course, no change in the intensity of primary radiation in that direction.  There was, however, a considerable change in the intensity of secondary radiation in both the horizontal and vertical directions, one reaching a maximum when the other attained a minimum.   By turning the bulb through a right angle the electroscope which had previously indicated a maximum of intensity indicated a minimum, and vice versa.  The position of the bulb when the vertical secondary beam attained a maximum of intensity and the horizontal secondary beam a minimum was that in which the kathode stream was horizontal, the maximum and minimum being reversed when the kathode stream was vertical.  By turning the bulb through another right angle, so that the kathode stream was again horizontal but in the opposite direction to that in the other horizontal position, the maximum and minimum were attained as before.

Barkla’s results were published in two papers, a short letter in Nature2 and a more detailed article which appear in the Philosophical Transactions of the Royal Society3.  For a number of years, his results were the strongest evidence of the relationship between light and X-rays; as noted by the Braggs in their 1915 book, X-rays and Crystal Structure,

Undoubtedly the strongest evidence — up to the present time — of the similarity of nature of light and X-rays was supplied by the discovery of a form of polarisation of the latter rays.  Barkla showed that the X-rays issuing from a bulb and impinging upon matter were less scattered by the matter in a direction parallel to the stream of cathode rays in the bulb than in directions at right angles to the stream.

Though this might have been considered an impressive accomplishment to rest one’s scientific laurels on, Barkla was no lounger — he continued his research into secondary radiation and was awarded the 1917 Nobel prize in physics “for his discovery of the characteristic X-radiation of the elements.”

One doesn’t hear about Barkla’s clever experiment to detect the polarization of X-rays in any modern physics class.  It’s easy to forget that many of the results that we now take for granted in fact took quite a bit of effort and ingenuity to uncover!

***********************************************************

1 It’s times like this I’m glad I’ve done all those “basics” posts!

2 C. Barkla, “Polarisation in Röntgen rays,” Nature 69 (1904), 463.

3 C. Barkla, “Polarized Röntgen radiation,” Phil. Trans. Roy. Soc. Lond. A 204 (1905), 467.
